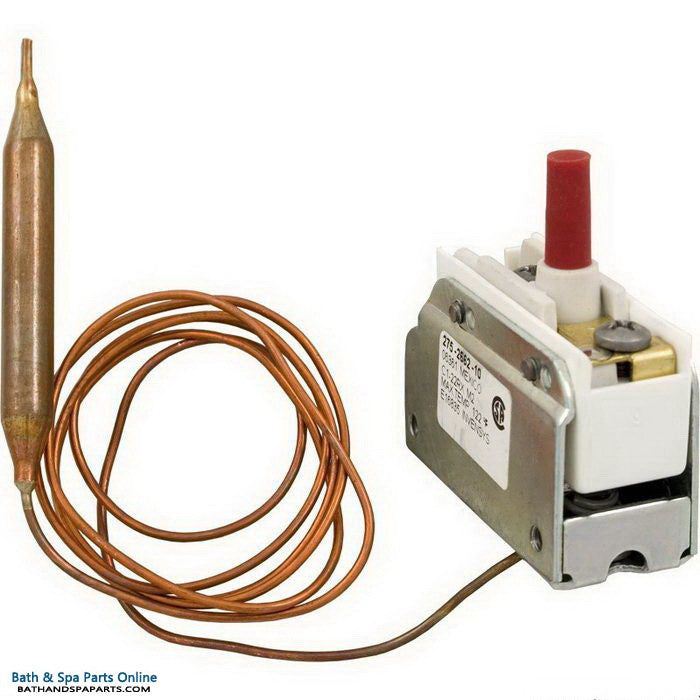

Invensys Hi-Limit Sensor [5/16" Dia] [36"] [Capillary] [SPST] [Screw Terminal] [25A] (275-2662-10)
| Heater Parts | |
| Invensys Appliance Controls | |
| 275-2662-10 | |
| 47-335-1083 |
SHARE & GET $10 FOR EVERY FRIEND WHO JOINS US & MAKES A PURCHASE!
$9.88 STANDARD SHIPPING WITHIN THE CONTIGUOUS USA.
High Limit
Manf# 275-2662-10
Capillary Length: 36"
Bulb Length: 2.50"
Bulb Diameter: 5/16"
Vinyl sleeve on capillary
Single pole rated at 25
amps with temperature rating set at 121ÃðF. Best results are obtained
when the bulb is installed in a dry well or groove tube at or
immediately before the heater
36" capillary length, 5/16" bulb thickness
This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one
36" capillary length, 5/16" bulb thickness
This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one
