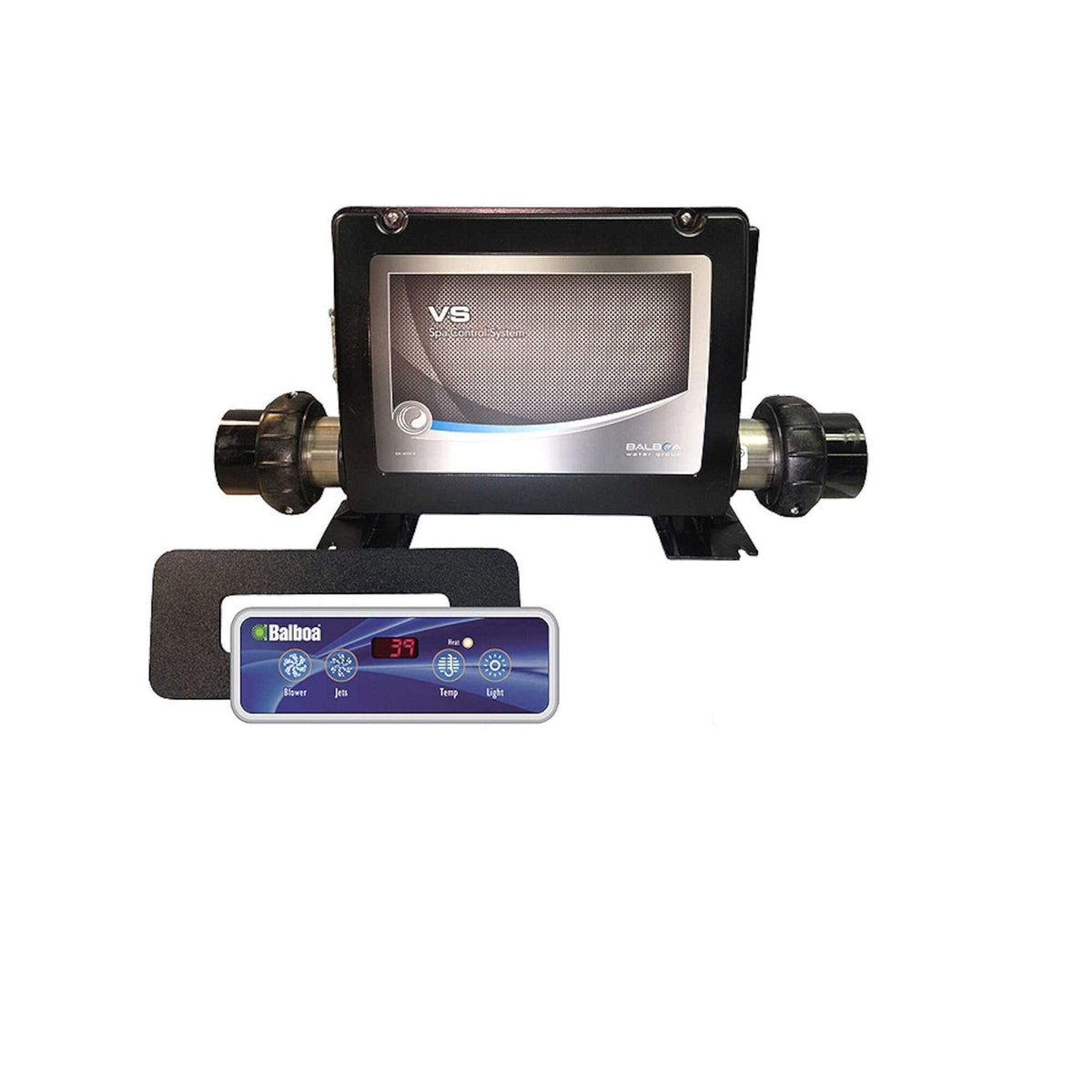

Balboa VS500 BP7 4kW Retrofit Kit Complete Spa Control System (54219-Z)

Control System Parts
Balboa Water Group
54219-Z
58-138-2056
$0.00

$9.88 STANDARD SHIPPING WITHIN THE CONTIGUOUS USA.

(DISCONTINUED BY MANUFACTURER)

SEE REPLACEMENT PART: OBSOLETE

*** Required to be installed by Spa Technician

Next Generation of Entry Level Hot Tub Control Systems
The Value Series (VS) family of hot tub control systems were designed using Balboas patented M7 temperature and flow sensor technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.


Designed for Easy Installation and Service
The VS family is based on a common universal control platform, which increases feature flexibility while reducing installation and configuration problems. The VS family has exceptionally good feature flexibility, so its performance is competitive with many other higher end products.


Flexible, Highly Reliable, Feature Rich
The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible power supply that can be wired for 120 or240 volts, a 4.0kW heater, and support mini, duplex or standard digital panels.


Why The Value Pack Retrofit Kit
The Value Pack Retrofit kit is based on the Value Series (VS) family of hot tub controls which were designed using Balboa's patented M7 temperature and flow sensor technology. The VS systems have a plastic enclosure to eliminate corrosion and suppress water intrusion. Also, the connectors are built onto the circuit board to minimize wires and simplify service. The Value Pack is meant to be installed by a spa professional who can rest easy knowing he's working with a kit that is known for reliability, ease of installation and serviceability.


Features & Benefits
  • Replaces failure-prone mechanical pressure/flow switch
  • Can be plumbed to either suction or pressure side of pump
  • 120/240V convertible power
  • Custom plastic enclosure
  • M7 flow/ temperature sensors
  • Rigorously tested
  • US & Canadian safety approvals

Included With Your Retrofit Kit:
  • 5.5kW heater with Balboa's patented M7 technology (no pressure switches)
  • Spa Control System 54368-HC
  • Panel Model - Lite Duplex: Panel Dimensions (in) 6.32 x 2.25 (cm) 16.05 x 5.72
  • Other Parts Included - Cords, Bezel, and one LED light assembly

This Value Pack Retrofit Kit Also Supports: (Not Included):
  • 2 Speed pump (120V/240V)
  • Ozone Generator (120V/240V)
  • Spa Light (12V/12W)

KIT P/N 54216-Z 54217-Z 54218-Z 54219-Z 54220-Z
System VS500Z VS501Z VS510SZ VS500Z VS501Z
Heater Yes (5.5kW Stainless Steel Flow Thru)
M7 Technology Yes (No Pressure Switch Needed)
2spd Pump (120/240)
Yes


Yes


Yes


Yes


Yes

1spd Pump (240)
No


No


Yes


No


No

Blower (120/240)
No


Yes or 1sd pump


Yes


No


Yes or 1sd pump

Ozone (120/240)
Yes


Yes


Yes


Yes


Yes

Spa Light (12V/12W)
Yes


Yes


Yes


Yes


Yes

Panel Model Lite Duplex Lite Duplex Serial Standard Mini-Oval Mini-Oval
Panel Part Number 54105
51676
53189-01
52487
52144
Panel Dimensions (in) 6.32 x 2.25 6.32 x 2.25 7.35 x 3.26 4.34 x 1.58 4.34 x 1.58
Panel Dimensions (cm) 16.05 x 5.72 16.05 x 5.72 18.67 x 8.28 11.02 x 4.01 11.02 x 4.01
Adapter Part Number 11109 11109 10165 No No
Overlay Part Number No 10752 10402 No 11127

* All necessary cables come complete with the retrofit kit.
